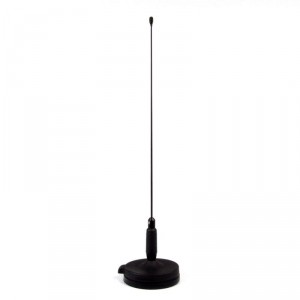

Dual-band Magnetic Mobile Antenna (AM-UHF5/8/GPS Magnetic mount)

This dual-band mobile antenna of Inmak’s GPS series of antennas is supplied with a high-performance radiator to allow for higher gain in the UHF radio frequency. An encapsulated coil and a conical black-chromed stainless steel whip are used when designing the radiator. Internally the product is coupled with an active GPS module. The magnetic mounting solution allows for flexibility when choosing an appropriate spot on the vehichle.

Add to Inquiry Cart

Specifications

UHF/TETRA5/8

Electrical

Frequency Range 380-430 MHz
SWR < 1.5
Gain 3 dB /5.15 dBi/
Impedance 50 Ω
Max Power 20 W
Polarization Vertical
Supply Voltage -
Consumption -
Noise Figure -

Mechanical

Connector any
Cable type 5 m RG58
Weight 400 g ± 30 g
Mounting Magnetic
Material Radiator: stainless steel Base: steel and polyamide
Operating Temperature -30 to +80°C

GPS

Electrical

Frequency Range 1575.42 MHz
SWR < 1.5
Gain 24 dBi at 2.7V / 26 dBi at 5V
Impedance 50 Ω
Max Power -
Polarization RHCP
Supply Voltage 2.7-5 V
Consumption 12 mA at 2.7V / 26 mA at 5V
Noise Figure 1.7-2.1 dB

Mechanical

Connector any
Cable type 5 m RG174
