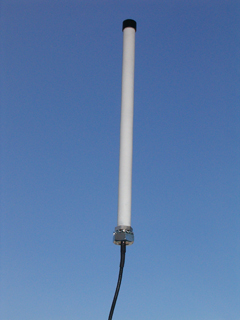

AM1.2-3.5G is a 3.5 dB gain for the 1.2 GHz Band. The fiberglass tube completely encloses the carefully designed radiating element to ensure excellent performance in all climate conditions. This antenna is used where reliability is of great importance. A long lifetime has been taken into consideration when designing this antenna – sturdy and strong. The antenna is supplied with 2 meter-long cable of the RG174 type.
Specifications
| Frequency range |
1100-1300 MHz |
| SWR |
< 1.5 |
| Gain |
3.5 dB |
| Impedance |
50 Ω |
| Max. Power |
50 W |
| Polarization |
Vertical |
| Cable |
2 m |
| Length |
300 mm |
| Weight |
300 g |
Ordering designations
| AM1.2-3.5G |
When ordering, please, specify exact frequency, antenna base and type connector. |
|
