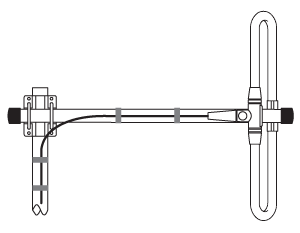

Center-fed-folded Dipole for the 300-350 MHz Band (AC3-D)
Type: Dipole
Single, 0 dBd folded dipole incorporating a balun optimized for wide bandwidth and accurate matching. The entire balun unit and feeder terminations are completely sealed in a polyethylene (PET) moulding ensuring permanent waterproof connections. The dipole have been constructed with high-quality aluminum to prevent corrosion. All metal parts are DC-grounded. The antenna is supplied with clamp for mounting on 30-50 mm diameter mast tubes.
Add to Inquiry Cart
Specifications
Electrical
| Frequency Range |
300-350 MHz |
| Band Width |
30 MHz |
| SWR |
< 1.5 |
| Gain |
0 dBd (2.15 dBi) |
| Impedance |
50 Ω |
| Max Power |
150 W |
| Polarization |
Vertical; Horizontal |
| Antistatic Protection |
DC-grounded (Connector shows a DC-short) |
Mechanical
| Connector |
N female |
| Length |
0.5 m |
| Weight |
2.4 kg |
| Mounting |
30-50 mm mast tube |
| Material |
Aluminum |
| Wind Load |
150 km/h |
