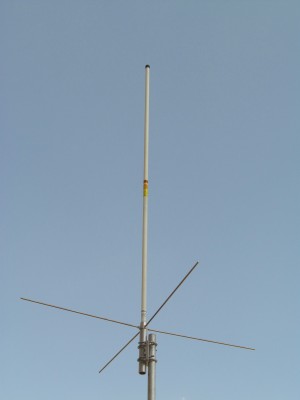

Omnidirectional Base Station Antenna with Heavy-Duty-Fiberglass Radome for the 144-174 MHz Band (BA2-5/8/3G/lc)

Type: Omnidirectional

BA2-5/8/3G/lc is a 3 dBd gain, omnidirectional rod-type base station antenna for the 144-174 MHz Band. BA2-5/8/3G/lc is designed for mounting on supporting tubes with outer diameter between 20 mm and 40 mm
The onstruction of the terminating section of the antenna completely covers the connector in an aluminum tube, allowing maximum water and frost protection. The fiberglass tube completely encloses the carefully designed radiating element to ensure a reliable service in all climates. A long lifetime has been taken  into consideration when designing this antenna – sturdy and strong. This antenna equipped with 4 pcs. radials, length 45 cm.

Add to Inquiry Cart

•

Specifications

Electrical

Frequency Range	144-174 MHz
Band Width	3 MHz
SWR	< 1.5
Gain	3 dBd (5.15 dBi)
Impedance	50 Ω
Max Power	150 W
Polarization	Vertical

Mechanical

Connector	UHF female
Length	1.5 m max
Weight	1.2 kg
Mounting	20-40 mm mast tube
Material	Radome: fiberglass Mounting bracket: aluminum
Wind Load	150 km/h
