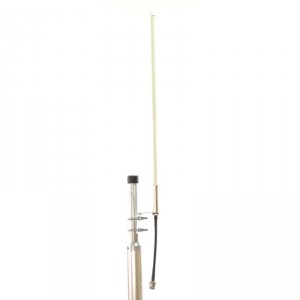

Omnidirectional Base Station Antenna with Heavy-Duty-Fiberglass Radome for the 820-960 MHz Band (BA900-6G)
Type: Omnidirectional
BA-900-6G is omnidirectional rod-type base station antenna. The fiberglass tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates. A long lifetime has been taken into consideration when designing this antenna – sturdy and strong. The antenna is supplied with 15 cm. high-frequency cable, which can terminate on any connector.
Add to Inquiry Cart
Specifications
Electrical
| Frequency Range |
820-960 MHz |
| Band Width |
40 MHz |
| SWR |
< 1.5 |
| Gain |
6 dBd (8.15 dBi) |
| Impedance |
50 Ω |
| Max Power |
100 W |
| Polarization |
Vertical |
| Antistatic Protection |
N/A |
Mechanical
| Connector |
Any |
| Length |
0.5 m |
| Weight |
0.65 kg |
| Mounting |
50 mm x 50 mm wall mounting bracket 20-25 mm mast tube |
| Material |
Radome: fiberglass Mounting bracket: steel bracket with steel fixing |
| Wind Load |
150 km/h |
