4-dipole Array for the 118-136 MHz Band (BD2-6G/AIR)
Type: Dipole Array

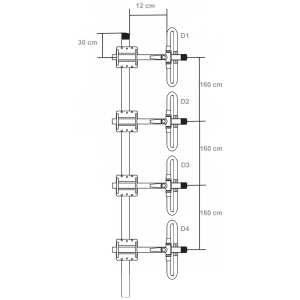

BD2-6G/AIR is a basestationantenna compounded of 4 dipoles,whichgive the antenna 6-dBd gain.The antenna
is supplied with four cables for each dipole and a SP2-4 cable splitter, which can terminate with any kind of connector. All metal parts are DC-grounded.
Add to Inquiry Cart
Specifications
Electrical
| Frequency Range |
118-136 MHz |
| Band Width |
10 MHz |
| SWR |
< 1.5 |
| Gain |
6 dBd (8.15 dBi) |
| Impedance |
50 Ω |
| Max Power |
300 W |
| Polarization |
Vertical |
| Antistatic Protection |
DC-grounded (Connector shows a DC-short) |
Mechanical
| Connector |
N female |
| Length |
6.3 m |
| Weight |
18 kg |
| Mounting |
30-60 mm mast tube |
| Material |
Aluminum |
| Wind Load |
150 km/h |
