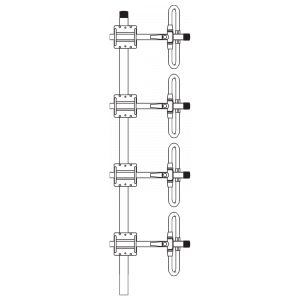

4-Dipole Array for the 300-350 MHz Band (BD3-6G/i)
Type: Dipole Array
BD3-6G/i is a base station antenna compounded of 4 dipoles, which give the antenna 6-dBd gain. The antenna is supplied with four cables for each dipole and a SP3-4 cable splitter, which can terminate with any kind of connector. All metal parts are DC-grounded.
Add to Inquiry Cart
Specifications
Electrical
| Frequency Range |
300-350 MHz |
| Band Width |
15 MHz |
| SWR |
< 1.5 |
| Gain |
6 dBd (8.15 dBi) |
| Impedance |
50 Ω |
| Max Power |
300 W |
| Polarization |
Vertical |
| Antistatic Protection |
DC-grounded (Connector shows a DC-short) |
Mechanical
| Connector |
N female |
| Length |
4.8 m |
| Weight |
20.0 kg |
| Mounting |
30-60 mm mast tube |
| Material |
Aluminum |
| Wind Load |
150 km/h |
